Monocular, binocular, quad. That is how night vision gets sold, and it is not how it works. The useful way to sort the types of night vision goggles is to look at four things at once: how many image intensifier tubes the device has, how many objective and eyepiece sets it carries, whether your two eyes receive two genuinely separate optical channels, and how the pods are held together. Sort that way and price, weight and capability stop being mysterious.
One tube, one eye: the monocular
One objective, one tube, one eyepiece, one eye. The PVS-14 is the reference example, with a 40 degree field, 1x magnification, and a single AA cell that runs it for 50 hours or more.
What you gain is the lightest and least expensive route into image intensification. It can be handheld, helmet-mounted, or mounted behind a red dot or a magnified day optic, and the eye you are not using keeps its natural dark adaptation.
What you give up is stereo vision. Your brain has to fuse a bright intensified image in one eye with a dark natural image in the other. That works well in genuinely dark surroundings and becomes hard in mixed light. Judging distance and moving quickly over broken ground on a single tube takes practice, and for most people running at speed on a monocular is not realistic.

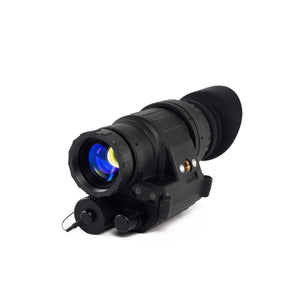

PVS-14 monocular with autogated FOM 1600 tube and manual gain
One tube, two eyes: the pseudo-binocular
One objective, one tube, and a beam splitter feeding two eyepieces. Both eyes see an image, but it is the same image down one optical channel. There is no stereo information, only comfort.
Most of these designs are old. Their tube formats frequently do not match modern 18 mm housings, so the tubes are not interchangeable with anything current, and the housings tend to be bulky. They are cheaper than a true binocular for a reason, and you will not find one in our range.
Two tubes, two eyes: the true binocular
Two objectives, two tubes, two eyepieces, each eye on its own optical channel. This is what produces depth perception, and depth perception is what lets you move at night rather than merely look. The cost is two tubes, which is the largest single line item in any night vision purchase, plus two lens sets, more weight, and more parts to keep in alignment.
Within this group, the bridge design splits everything in two.
Fixed bridge
Both pods sit on a rigid bridge. You can slide them laterally to set interpupillary distance, but you cannot swing one pod out of the way and you cannot split the goggle into two monoculars. ANVIS-9, RNVG and MOD-3 pattern devices are the classic examples.
The strength is simplicity and rigidity, which suits long static use. The weakness is that flipping the whole assembly up leaves it standing proud of the helmet with its mass well forward, and switching to one eye or to no goggle means moving the entire unit.
Articulating
Each pod swings outward on its own hinge. The reason this design took over is mechanical rather than fashionable: a fixed bridge flipped up still projects in front of the helmet, while articulated pods fold flat against it, bringing the weight back over your head and taking load off your neck. It also lets you run two eyes, one eye or none without removing the goggle, and use a handheld thermal or magnified optic with the free eye.
Our BNVD-1431 MK2 pods swing 140 degrees sideways. The PVS-31 pods pivot at least 130 degrees, and that housing comes in at 450 grams or less with tubes and without a battery. Both of ours cut power automatically when flipped up, though not every articulating housing does, so check the specific model rather than assuming.
The cost of articulation is the hinge: a moving part in a sealed housing whose life depends on materials and on how it is treated. Hinges are replaceable on our housings for exactly that reason. The binocular night vision range covers both bridge styles so the weight and pivot figures can be compared directly.
BNVD-1431 MK2 articulating binocular · PVS-31 lightweight binocular
Four tubes, two eyes: the panoramic quad
Two forward tubes in parallel for stereo and resolution, and two outboard tubes angled outward for peripheral view, merged into a single picture. The PNVG-18 takes the field from around 40 degrees to around 100.
What that buys is speed in enclosed spaces. Clearing a room with a 40 degree field means turning your head to see the corners; with 100 degrees you see them from where you stand. Driving, flying and fast movement over terrain benefit in the same way, which is why aviation has its own guidance on night vision use; the FAA's advisory circular library is where the civil aviation material on night vision imaging systems is published.
What it costs is four tubes at the price of four tubes, a housing of 800 grams or less plus a mount, a battery pack at the rear of the helmet because there is no internal cell, and a neck that has been conditioned for it. A quad is not a better binocular. It is a different tool for a specific job, and as a first goggle it is almost always the wrong choice.
PNVG-18 panoramic goggle with autogated FOM 1600 tubes
Where the tube budget goes in each type
One consequence of layout is easy to miss: the number of tubes multiplies your tube budget directly.
A monocular needs one tube, so a given budget buys the best single tube you can afford. A binocular needs two matched tubes, so the same budget buys two tubes of roughly half the value each, or one good pair at double the spend. A quad needs four.
This is why a well-tubed monocular often outperforms a poorly-tubed binocular for pure observation, and why stepping up a layout without stepping up the budget usually produces a worse device than the one you had.
Matching type to use
A short version, for readers who want the conclusion rather than the reasoning.
Observation from a static position, or a first device on a budget: monocular. Movement at night, driving, or any task where distance judgement matters: articulating binocular. Long static use where rigidity matters more than flexibility: fixed bridge binocular. Room clearing, aviation, or anything requiring wide situational awareness: panoramic quad.
How the types of night vision goggles differ on paper
Set the four layouts side by side and the trade-offs become concrete rather than descriptive.
| Layout | Tubes | Field of view | Stereo depth | Typical weight class | Power |
|---|---|---|---|---|---|
| Monocular | 1 | around 40 degrees | no | lightest | internal AA, 50 hours or more |
| Pseudo-binocular | 1 | around 40 degrees | no | moderate to heavy | varies by generation |
| Fixed-bridge binocular | 2 | around 40 degrees | yes | moderate | internal AA plus optional pack |
| Articulating binocular | 2 | around 40 degrees | yes | 450 to 580 grams | internal AA or external pack |
| Panoramic quad | 4 | around 100 degrees | yes, centrally | 800 grams or less plus mount | external pack only |
Two points stand out. Field of view is identical across every two-tube layout, so the choice between fixed bridge and articulating is about handling rather than what you see. And only the quad changes the field, which is what you are paying the extra tubes for.
Common mistakes when choosing between types
Buying a quad first. It is the most impressive device to look through and the hardest to live with, because of weight, neck load and cost. Most people who buy a quad first would have been better served by a good binocular and better tubes.
Buying a binocular to get a wider view. It does not work that way. Two tubes give you depth, not width. If you want width you need four tubes.
Buying a monocular and expecting to move quickly. It is the right tool for observation and for a first purchase, and the wrong one for fast movement over uneven ground.
Buying on housing and skipping the tubes. The layout sets the ceiling on what the device can do; the tubes set how much of that ceiling you actually reach.
Service and parts, which vary by type
One practical difference rarely appears in comparisons. The more tubes and moving parts a layout has, the more there is to maintain.
A monocular has one tube, one seal and no hinge. An articulating binocular has two tubes, two seals and two hinges, and hinges are a wear item. A quad has four tubes, four seals and an external power dependency. None of that makes the more complex layouts a bad choice, but it should inform how you budget for service and whether replacement parts are available for the housing you are considering.
What structure does not tell you
Structure is the first filter, not the last. Once you have chosen a layout, the decisions that remain are tube performance, lens field of view, weight, power, automatic shutoff behaviour, bridge and hinge reliability, interpupillary adjustment, mount compatibility, counterweight and who will service the device.
Two goggles with identical layouts can be thousands of dollars apart on tubes alone, and the mounting interface matters more than most buyers expect; Wilcox Industries publishes the documentation for the dovetail pattern that most modern housings, including ours, are built around.
Pick the layout for the job. Pick the tubes for the nights you actually go out on. The full night vision range is organised so those two decisions can be made separately, which is how they should be made.
Frequently Asked Questions
What are the main types of night vision goggles?
Four, sorted by what is inside: single-tube monoculars, single-tube pseudo-binoculars that split one image to both eyes, true two-tube binoculars in either fixed-bridge or articulating form, and four-tube panoramic goggles. Tube count and optical channel count matter far more than the marketing names.
What is the difference between a fixed bridge and an articulating binocular?
On a fixed bridge both pods sit rigidly and cannot be swung out individually. On an articulating housing each pod folds outward on its own hinge, which brings the weight closer to the helmet when flipped up and lets you switch between two eyes, one eye and none without removing the goggle. The trade-off is the hinge as a moving part.
Is a pseudo-binocular the same as a real binocular?
No. A pseudo-binocular uses one tube and splits the image to two eyepieces, so both eyes see the same picture with no stereo information. A true binocular has two tubes and two separate optical channels, which is what produces depth perception.
Do I need a four-tube panoramic goggle?
Probably not, unless your task specifically needs wide peripheral awareness, such as room clearing, driving or flying. A quad costs roughly double a good binocular, weighs more, requires an external battery pack and needs neck conditioning. As a first device it is almost always the wrong choice.
Can I use a monocular for moving at night?
For walking, yes, with practice. For running over broken ground, generally not. Your brain is fusing a bright intensified image with a dark natural one and there is no stereo depth information, so distance judgement is unreliable at speed. That is the main reason people move to binoculars.
