People ask which image intensifier tube performs better constantly, and almost never ask which one physically fits, right up until a tube arrives and does not. MX-10160 vs MX-11769 is a fit question first and a performance question not at all: both are 18 mm image intensifiers, and either can be Gen 2+ or Gen 3, green or white phosphor, gated or not. What differs is the mechanical envelope and the electrical interface. This article explains what each drawing number covers, which of our housings takes which, and how to identify a tube you already own before you commit to a build.
What the numbers actually mean
MX-10160 and MX-11769 are United States military drawing numbers for 18 mm tube assemblies. They define the physical envelope, how the tube seats in the housing, and how it connects electrically. They say nothing about resolution, signal-to-noise ratio or figure of merit.
MX-10160 is the format used in the PVS-14 and, in its original form, in ANVIS aviation goggles. It carries its own power supply and a simple contact interface. The overwhelming majority of aftermarket and surplus 18 mm tubes are in this format, which is why almost every tube on our image intensifier tube listing is described as MX-10160 or as 18 mm small ANVIS 10160 style.
MX-11769 is specified for the PVS-31 and similar binoculars. It carries a manual gain interface and a slightly different mechanical arrangement.
The underlying specifications are public documents rather than trade secrets. The Defense Logistics Agency publishes them through its ASSIST specification database, and the performance specification that covers this class of assembly, MIL-PRF-49427, is the authoritative reference if you want to read the requirements yourself rather than take a seller's word.
Which housing takes which
| Housing | Native format | Other formats |
|---|---|---|
| PVS-14 | MX-10160 | — |
| BNVD-1431 MK2 | MX-10160 | MX-11769 after a minor pod modification |
| BNVD-931 | MX-10160 | MX-11769 after a minor pod modification |
| PVS-31 | MX-11769 | — |
| PNVG-18 | 18 mm autogated, MX-10160 pattern | confirm at order time |
The 1431 MK2 and the 931 share pod architecture, so the same rule covers both. "Minor modification" means bench work with the pod open, and an open pod has to be dried, refilled with dry nitrogen and leak-checked afterwards. Decide before you buy the tube, not after it arrives.
The interface question inside the fit question
An MX-10160 tube can be a plain two-contact tube, a three-pin manual gain tube, or a tube with flying wires. All three fit the 1431 MK2 mechanically. What changes is whether the housing's gain control does anything.
With a plain two-contact tube the power switch is on and off. With a three-pin tube, an MX-11769 tube or a flying-wire tube installed according to the tube installation manual, rotating the power switch adjusts gain. Our listings state this in the title, marked as 3PIN, 2PIN or 3 wire, and the price difference between the two interfaces on an otherwise identical tube is small. If you want manual control of the picture, pay it.

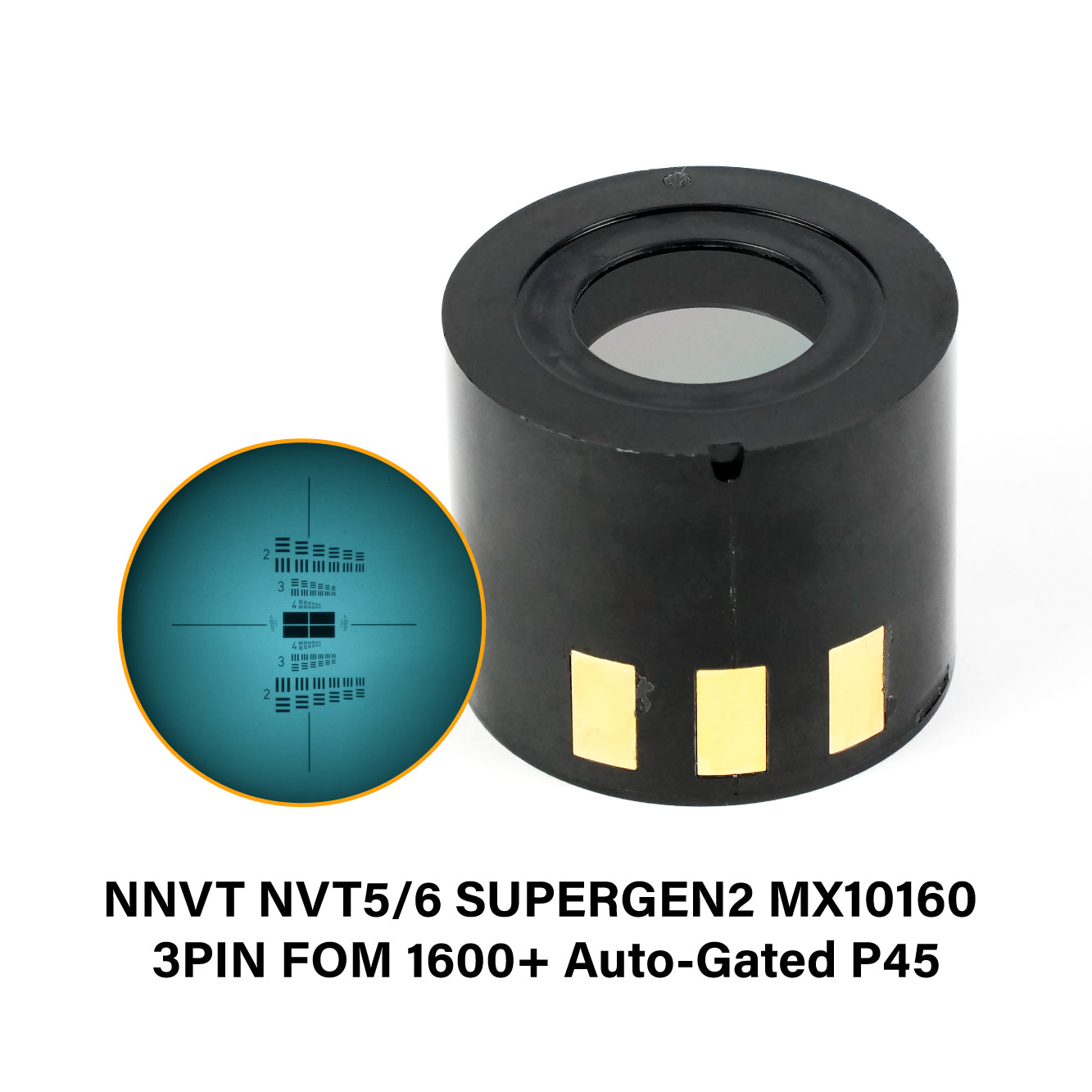

NVT5-class FOM 1600 autogated tube with three-pin manual gain
How to identify a tube you already have
- Measure the screen. Both formats are 18 mm, so this only rules out 16 mm and 25 mm tubes. It is still worth doing first, because a mismatch here cannot be adapted around.
- Look at the base. A plain contact ring with no additional pins is MX-10160 without manual gain. Three pins on the base, or two fine wires emerging from it, indicates a manual gain interface.
- Find the data sheet. A tube with no sheet cannot be valued, cannot be matched to a partner and cannot be troubleshot against known figures. Every tube we ship carries a serial number and a measured figure of merit stated to two decimal places rather than a bracket.
- Ask before ordering a housing. Send a photograph of the base and the serial number and the compatibility question is answered in minutes rather than after a shipment.
Why the format question exists at all
It is reasonable to ask why an industry would end up with two 18 mm formats that do not interchange. The short answer is that they were specified for different platforms at different times and for different jobs.
The MX-10160 pattern grew out of the monocular and aviation goggle world, where a single tube sits behind a single objective and the electrical requirement is simply power in, image out. Its simplicity is exactly why it became the de facto standard for the aftermarket: fewer contacts, fewer variables, more suppliers.
The MX-11769 pattern came from the binocular world, where two tubes have to be balanced against each other and a user benefits from adjusting gain by hand rather than accepting an automatic level. That requirement adds an interface, and the interface adds mechanical differences.
Neither is superior. They are answers to different questions, and the practical consequence for a buyer today is simply that you have to know which question your housing was designed around.
What a data sheet should tell you
Since the format question is settled by inspection, the remaining decision is which specific tube to buy, and that decision lives entirely on the data sheet. A complete sheet states the serial number, the resolution in line pairs per millimetre, the signal-to-noise ratio, the figure of merit derived from those two, the phosphor type, whether the tube is gated, and the blemish grade by zone.
Two tubes advertised in the same bracket can differ by a couple of hundred figure-of-merit points, which is real money and a visible difference on a dark night. Equally important for binocular builders, two tubes can have similar figures of merit and still differ noticeably in gain, which is why matched pairs are sold as pairs rather than as two singles.
If a seller cannot produce a sheet, you are not being offered a specification. You are being offered a bracket, and you should pay the bottom of that bracket.
MX-10160 vs MX-11769: what people get wrong
The most common mistake is assuming that because both formats are 18 mm they are interchangeable. They are not, and the modification that makes an MX-11769 work in a 1431 pod is real bench work with a purge afterwards.
The second is buying on the generation badge. Format, generation and measured performance are three independent axes. A Gen 3 tube in the wrong format is useless to you; a Gen 2+ tube in the right format with a measured figure of merit of 1848 is a genuinely good tube.
The third is buying a tube without a sheet because it was cheap. A tube with unknown resolution, unknown signal-to-noise ratio and unknown blemish grade is a lottery ticket, and if you are building a binocular you need two tubes that match, which is impossible to arrange without documentation.
NVT7-class FOM 2000 autogated tube in MX-10160 pattern
Ordering a tube without regret
Three habits remove almost all of the risk from a tube purchase.
Ask for the sheet before you ask for the price. A seller who leads with the measured numbers is confident in them. A seller who leads with the generation badge is selling a category.
Ask what the tube came out of, if it is used. A tube pulled from a working goggle by someone who documented the removal is a different proposition from a tube of unknown provenance in a padded envelope.
Ask about return terms specifically for compatibility. A tube that does not fit is the most avoidable of all failed purchases, and a seller willing to stand behind fit is telling you they checked.
The aviation case
The BNVD-931 exists for one reason: aviation optics. It takes the same MX-10160 tubes as the 1431 MK2 but is built around ANVIS-6 and ANVIS-9 pattern lenses with coatings that suppress stray light from cockpit panels and instrument glow. If your tubes came out of an ANVIS-9 and you want to keep that lens system while gaining a modern articulating housing, the BNVD-931 housing kit is the path that preserves both.
If you already bought the wrong format
It happens, and the recovery options are better than people assume.
If you bought an MX-11769 for a 1431 or a 931, the pod modification is a legitimate route rather than a bodge, provided it is done properly and the pod is purged afterwards. Budget for bench time rather than attempting it dry.
If you bought an MX-10160 for a PVS-31, there is no modification that helps and you should resell rather than force it. MX-10160 tubes have the broadest market of any 18 mm format, so a tube with a data sheet moves quickly and usually close to what you paid.
If you are unsure which you have, do not install it. A tube that has been forced into the wrong seat can be damaged in ways that are not visible until it is powered.
Before you buy anything
Write down four things about the tube in front of you: the format, the interface, the measured figure of merit and the serial number. Write down two things about the housing: its native format and whether you are willing to have a pod modified and purged. Those six facts decide the purchase, and every one of them is knowable before money changes hands.
Frequently Asked Questions
What is the difference between MX-10160 and MX-11769?
They are United States military drawing numbers describing two different 18 mm tube assemblies. They define the mechanical envelope and the electrical interface, not the performance. Either can be Gen 2+ or Gen 3, green or white phosphor, gated or non-gated. The difference matters for fit, not for image quality.
Will an MX-11769 tube fit a BNVD-1431 MK2?
Yes, after a minor modification to the pod. Because that work requires opening a sealed pod, the assembly then has to be dried, refilled with dry nitrogen and leak-checked. Decide whether you are willing to do that before buying the tube rather than after it arrives.
How do I tell which format a tube I already own is?
Look at the base. A plain contact ring with no additional pins indicates MX-10160 without manual gain. Three pins, or two fine wires emerging from the base, indicates a manual gain interface. Photographing the base and the serial number and asking is faster and safer than guessing.
Does a three-pin tube give a better image than a two-pin tube?
Not by itself. The three-pin interface enables manual gain control, so you can tune brightness rather than accept the tube's automatic level. Image quality comes from the tube's resolution and signal-to-noise ratio, which are stated on the data sheet.
Can I mix an MX-10160 and an MX-11769 tube in one binocular?
Mechanically it is not sensible, and optically it is worse. A binocular needs two tubes that are matched in gain and screen brightness or your eyes will fight each other within about twenty minutes. Buy a matched pair with data sheets.
