Ask whether you can use night vision with glasses and you will usually get "sort of" for an answer. The useful answer depends on three numbers that appear in the specification of every device and are almost never explained to buyers: the diopter adjustment range of the eyepiece, the eye relief, and the exit pupil. Once you know what each one does, choosing between taking your glasses off, keeping them on, or fitting corrective lenses becomes a straightforward decision rather than a matter of trial and error.
The three numbers that decide everything
Diopter range is how much correction the eyepiece itself can apply. A PVS-14 eyepiece adjusts from -6 to +2 diopters. If your distance prescription falls inside that range and you have little or no astigmatism, you can take your glasses off, turn the eyepiece, and get a sharp image. A -4.50 prescription is comfortably inside. A -7.00 is not.
Eye relief is the distance from the eyepiece glass at which your eye sees the full field. It is 25 mm on the PVS-14 and 25 mm plus or minus 2 mm on the panoramic four-tube housing. Spectacle lenses hold your eye further back than that figure allows, and the field begins to vignette at the edges. On a 40 degree monocular you lose a few degrees around the rim, which is annoying. On a roughly 100 degree panoramic goggle you lose the overlap between the central and outboard channels first, which defeats the reason you bought it.
Exit pupil is the diameter of the light cone leaving the eyepiece. The panoramic housing specifies 14 mm plus or minus 1 mm. A larger exit pupil is more forgiving of imperfect eye position, which is why quad goggles are more usable with thin-framed glasses than the eye relief figure alone would suggest.
Option 1: glasses off, use the diopter
For most wearers this is the answer. Set the diopter with the device powered, in the dark, focused at infinity, one eye at a time. On a binocular each eyepiece adjusts independently, so a person with -2.00 in one eye and -3.50 in the other is well served.
What the diopter cannot fix is astigmatism. A diopter adjustment moves the focal plane; it does not correct a difference in focus between one axis and another. If your prescription carries a cylinder value above roughly 1.00, the image will be sharp in one meridian and soft in the other no matter how you turn the ring. The National Eye Institute's overview of refractive errors explains the distinction between spherical error and astigmatism clearly, and it is worth reading before you conclude that a goggle is out of focus when in fact it is your eye.
Option 2: glasses on, protect the eyepiece
Wearers with meaningful astigmatism, or a prescription outside the adjustment range, generally keep their glasses on. Two consequences follow.

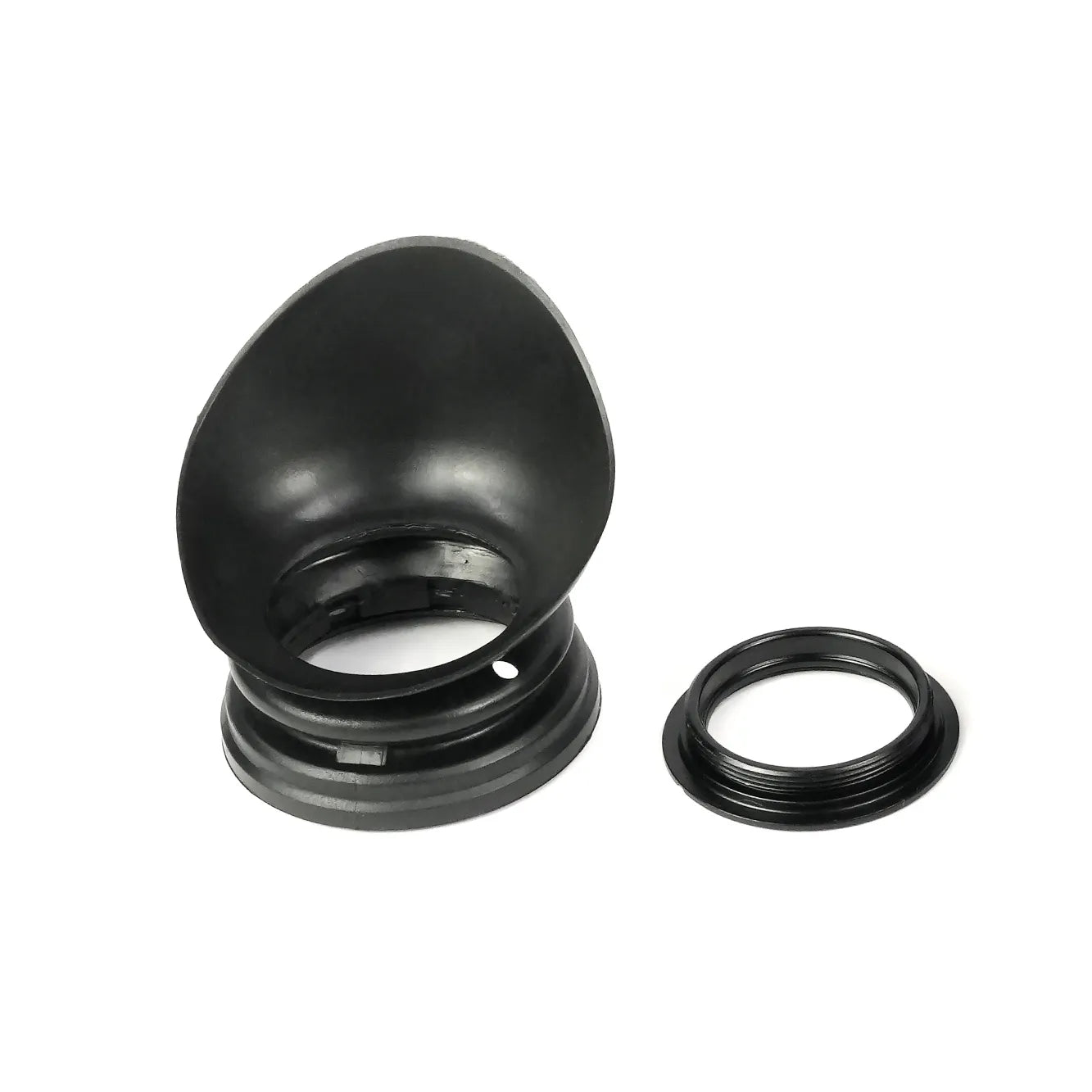

First, the rubber eye cup has to be folded back or removed, or your spectacle lens will drag across it and eventually across the eyepiece. Eye cups are consumable in this situation; a torn cup is normal wear rather than a defect, and a PVS-14 pattern rubber eye cup is an inexpensive replacement.
Second, fit a diopter protective lens over the eyepiece. It is a flat clear window that accepts the scratches your spectacle frame would otherwise put onto the eyepiece element itself. There is a PVS-31 diopter protective lens for binocular housings and an APNVG18 eyepiece diopter protective lens for the panoramic housing, the latter supplied in variants to suit different housing revisions.
Accept that you will lose some field of view in this configuration. On a binocular that is usually tolerable. On a panoramic goggle it is not, which is why option 3 matters most to quad users.
Option 3: corrective diopter lenses
The panoramic goggle's operator manual describes clip-in diopter lenses that snap onto the eyepiece to match the user's prescription. The manual's own caution deserves repeating: fit and remove them carefully, because the component you damage when you force one is the eyepiece housing rather than the lens. The PVS-31 similarly uses replaceable diopter lenses rather than a wide continuous adjustment range.
If you know your prescription and you are ordering either housing, say so at order time so the correct lenses ship with the goggle. Retrofitting later is possible but it is an extra shipment and an extra fitting.
The mount matters more than people expect
Eyepiece optics are only half the fit problem. The other half is where the goggle sits relative to your face, and that is the mount's job.
A glasses wearer needs the goggle a few millimetres further forward than someone without, so that the frames clear the eye cups. A mount with genuine fore-and-aft travel makes the difference between a usable setup and a compromise. Interpupillary adjustment matters equally: if the two pods are not centred on your pupils, the vignetting introduced by your spectacle lenses compounds with the vignetting from poor centring, and the result is a noticeably smaller usable field. Our night vision accessories range covers mounts, protective windows and eye cups together, because in practice these three are one fit problem rather than three.
A practical setup sequence for night vision with glasses
- Establish whether your prescription is inside the eyepiece range and whether you have significant astigmatism. Your current spectacle prescription tells you both.
- If it is inside the range with little astigmatism, take the glasses off, set each eyepiece independently in the dark at infinity, and keep the eye cups.
- If you have astigmatism or an out-of-range prescription, keep the glasses on, fold or remove the eye cups, fit protective windows, and expect a slightly reduced field.
- If you own a panoramic or PVS-31 pattern housing, order clip-in or replacement diopter lenses matched to your prescription so you can work with the glasses off and keep the full field.
- Set fore-and-aft and interpupillary distance on the mount last, with the goggle configured as you will actually use it.
Contact lenses, and why they change the calculation
If you wear contact lenses at all, they are usually the cleanest answer. Contacts sit on the eye rather than in front of it, so your eye is at the correct distance from the eyepiece and you keep the entire field of view. Soft toric lenses also correct astigmatism, which is precisely the error the eyepiece diopter cannot address.
The trade-off is comfort over a long night. Dry air, wind and extended wear all work against contact lenses, and a lens that dries out mid-session is worse than a slightly reduced field. Many users settle on contacts for planned activity and glasses with protective windows for everything else.
Fitting problems that look like optical problems
Several complaints that get blamed on the goggle are actually fit issues, and they are more common among glasses wearers because the frames push everything further back.
A dark crescent at the edge of the image is almost always eye position rather than a tube defect. Move the goggle closer, or centre it better, before you conclude anything about the optics.
Eye strain that builds over half an hour usually means the two eyepieces are set to different effective focus, or the interpupillary distance is wrong. Reset both eyepieces independently in the dark and re-centre the pods.
A goggle that seems to lose sharpness when you turn your head is moving on the mount. Check the dovetail engagement and the fore-and-aft lock before suspecting anything internal.
None of these needs a bench. All three are worth ruling out before a device goes anywhere for service, and all three are more likely when spectacle frames are holding the goggle away from the face.
Sizing up a goggle before you buy, if you wear glasses
If you are still choosing a device, three specification lines tell you most of what you need. Look for the diopter adjustment range first, because a wide range decides whether you can work without glasses at all. Look at eye relief second, since a larger figure tolerates spectacle frames better. Look at whether the eyepieces adjust independently third, because independent adjustment is what serves eyes with different prescriptions.
Housing type matters less than people assume. A monocular is the easiest device to use with glasses simply because only one eye is behind an eyepiece and the other keeps its normal correction. Binoculars are workable with either protective windows or replacement diopter lenses. Panoramic housings are the least forgiving of spectacles and the most improved by fitting corrective lenses instead. If your prescription is complex, start from the binocular night vision range rather than a four-tube goggle, and add corrective lenses from the outset.
One thing not to do
Do not set the diopter in a lit room against a nearby object. The eyepiece will end up focused for a close target, and the moment you use the goggle outdoors at distance the image will look soft and you will start suspecting the tube. Set it in the dark, on something genuinely far away, one eye at a time. This single habit resolves a surprising share of "the image is not sharp" complaints, whether or not the user wears glasses.
Frequently Asked Questions
Can I wear my glasses under night vision goggles?
Yes, but you will lose some field of view because your eye sits further from the eyepiece than the eye relief allows. Fold back or remove the eye cups so the frames do not drag, and fit a diopter protective window so your spectacle lenses scratch a replaceable part rather than the eyepiece itself.
Will the eyepiece diopter correct my prescription so I can take my glasses off?
If your distance prescription falls within the eyepiece range, which is -6 to +2 diopters on a PVS-14, and you have little astigmatism, yes. The diopter moves the focal plane, so it corrects spherical error only. Astigmatism above roughly 1.00 cylinder will remain visible as sharpness in one axis and softness in the other.
Why does my image look soft outdoors even though it was sharp when I set it up?
You probably set the diopter on a nearby object in a lit room. The eyepiece is then focused for close range. Set the diopter in the dark, against something at a genuinely long distance, one eye at a time.
Do quad goggles work better or worse with glasses than binoculars?
The exit pupil on a panoramic housing is more forgiving of eye position, but the penalty for sitting too far back is greater because you lose the overlap between the central and outboard channels first. For panoramic users, clip-in corrective diopter lenses are usually the better answer than wearing glasses.
Can I order a housing with diopter lenses matched to my prescription?
Yes. Provide your prescription at order time and the correct clip-in or replacement diopter lenses can ship with the goggle. Retrofitting afterwards is possible but requires an additional shipment and fitting.
