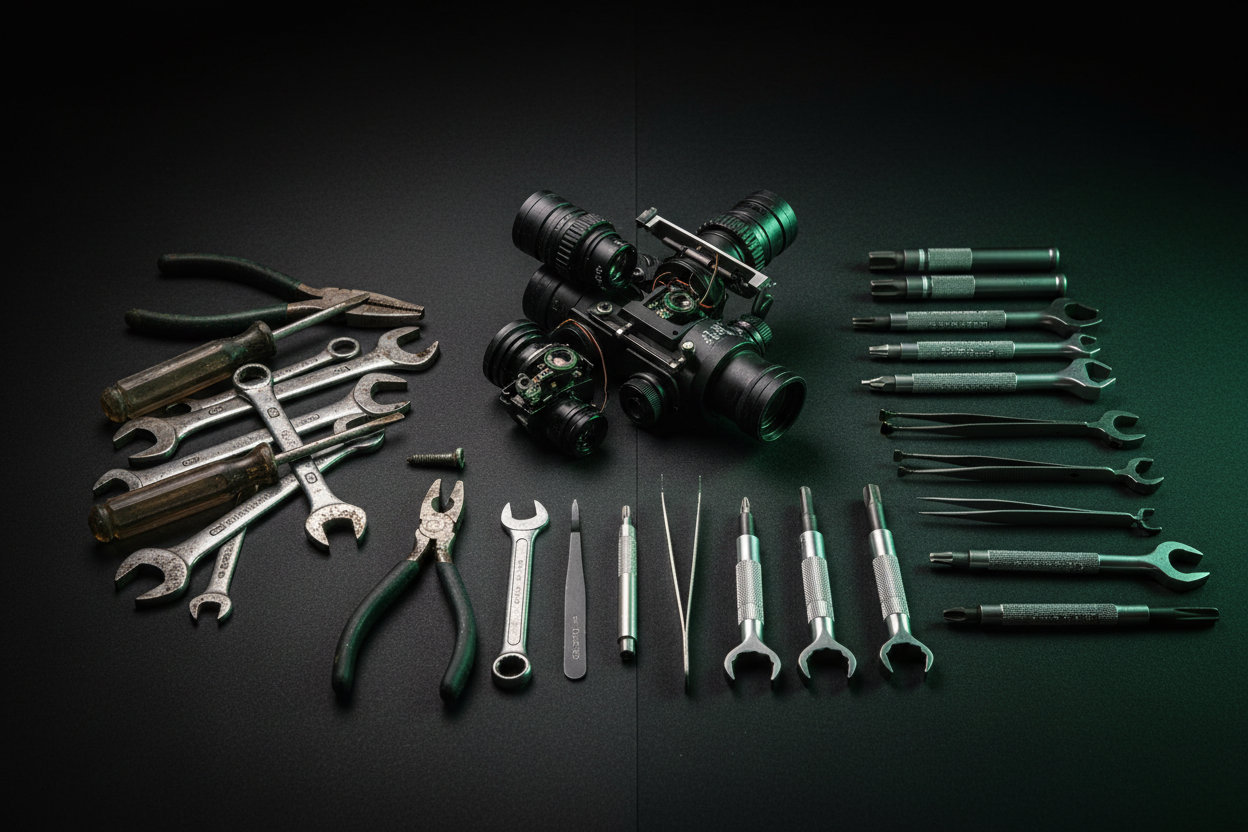

Why Cheap Tools Ruin Expensive NVGs: The Necessity of Specialized Assembly Tool Sets

Introduction

Night vision devices are built from expensive and highly sensitive components.

A complete NVG may include:

• One or more image intensifier tubes

• Objective lenses

• Eyepiece assemblies

• Tube retaining rings

• Lens locking rings

• Electrical contacts

• Gain-control components

• O-rings and seals

• Purge ports

• Battery contacts

• Precision housing threads

Even a relatively small mistake during assembly can damage a component worth far more than the tool used to install it.

This is why using cheap pliers, generic screwdrivers, improvised metal picks or poorly fitting wrenches is rarely a good way to save money.

A tool that slips once can scratch a lens.

A retaining ring tightened incorrectly can damage a thread.

A metal tip pushed too deeply into a housing can contact the image intensifier tube.

An unevenly installed optical component can create focus, sealing or alignment problems that only appear after the device is fully assembled.

Specialized night vision assembly tools are designed to fit specific interfaces more accurately and reduce unnecessary contact with fragile components.

In this guide, we explain why ordinary tools can ruin expensive NVGs, which assembly stages require the most care, and why a dedicated night vision device assembly tool set should be considered essential equipment for builders, repair technicians and serious night vision owners.

Why NVG Assembly Is Different from Ordinary Electronics Repair

A night vision device is not simply an electronic product inside a plastic shell.

It is an electro-optical system.

The housing must position the image intensifier tube and lenses at the correct distances while also maintaining:

• Optical alignment

• Electrical contact

• Environmental sealing

• Reliable focus

• Mechanical stability

• User comfort

A repair can appear successful mechanically while still causing optical problems.

For example, a lens assembly may thread into the housing, but incorrect installation can still result in:

• Limited focus travel

• Uneven seating

• Damaged threads

• Seal compression problems

• Internal contamination

• Optical tilt

This is why NVG work requires more than the ability to open and close a housing.

The technician must protect the optical path throughout the entire process.

The False Economy of Cheap Tools

Generic tools are attractive because they are inexpensive and easy to find.

However, they are usually designed for broad household or workshop use rather than precision night vision components.

A cheap tool may have:

• Poorly shaped contact surfaces

• Sharp unfinished edges

• Excessive play

• Weak material

• Incorrect dimensions

• Uneven pressure distribution

• Handles that provide too much leverage

• Tips that do not fit the intended slot or ring

The tool may work once.

But the risk of slipping, scratching or deforming a component is much higher.

The financial logic is simple:

Saving a small amount on tools makes little sense when the tool is being used near an expensive tube, optical lens or proprietary housing.

The correct question is not:

“How little can I spend on the tool?”

The correct question is:

“What tool reduces the chance of damaging the NVG?”

Common NVG Damage Caused by Improvised Tools

Scratched Optical Surfaces

A screwdriver or metal pick can easily move beyond a retaining ring and contact the nearby lens.

Even a small scratch may cause:

• Scattered light

• Glare

• Reduced contrast

• Visible artifacts

• Lower resale value

The damage may be especially noticeable around bright light sources.

Lens protection products can help during normal use, but they cannot protect an optic from a tool used incorrectly during assembly.

Damaged Retaining Rings

Night vision devices use several types of locking and retaining rings.

These components may secure:

• Image intensifier tubes

• Objective lens assemblies

• Eyepiece assemblies

• Optical collars

• Internal components

Using needle-nose pliers or a screwdriver as an improvised spanner can deform the ring or damage its engagement points.

A damaged ring may become difficult to remove during future service.

In severe cases, the ring can become stuck inside the housing.

ARGUS lists maintenance components such as the PVS-14 tube retainer ring within its spare-parts ecosystem, demonstrating how small precision parts form part of the complete service process.

Cross-Threaded Housing Components

Cross-threading happens when a threaded component enters the housing at the wrong angle.

This can damage both the removable component and the housing itself.

Possible results include:

• Rough focus adjustment

• Incomplete seating

• Damaged seals

• Optical tilt

• Difficult future disassembly

• Permanent housing damage

Generic tools can make cross-threading worse by allowing the user to apply excessive force before realizing that the component is misaligned.

A specialized tool provides better control and more even contact.

It should help the technician feel resistance instead of overpowering it.

Crushed or Cut O-Rings

O-rings help seal the NVG against moisture and environmental contamination.

During assembly, an O-ring can be:

• Pinched

• Twisted

• Cut

• Flattened unevenly

• Displaced from its groove

A device may still appear fully assembled even when the seal has been damaged.

The problem may only become visible later when the device develops internal condensation or fails a sealing test.

Proper tools do not guarantee correct seal installation, but they reduce the uncontrolled movement and uneven force that can damage seals.

After opening and servicing a housing, the device may also require leak inspection and nitrogen purging. For more detail, read The Importance of NVG Nitrogen Purging.

Image Intensifier Tube Damage

The image intensifier tube is one of the most expensive and sensitive parts of the device.

Tube damage can result from:

• Excessive retaining pressure

• Metal tool contact

• Dropping the tube

• Incorrect electrical contact

• Contamination

• Improper installation orientation

• Pressure on the input or output window

A tube should never be treated like an ordinary battery or circuit module.

Its glass surfaces, power supply and screen structure require careful handling.

A tube may continue working after poor installation but show new problems such as unstable contact, intermittent power or physical cosmetic damage.

Before final installation, builders can use a diopter tube test device to perform basic visual inspection.

What Makes a Tool “Specialized”?

A specialized NVG assembly tool is designed around a specific component or interface.

Its purpose is to provide:

• Correct engagement

• Even pressure

• Better control

• Reduced slipping

• Less contact with optical surfaces

• Lower risk of cosmetic damage

• More repeatable assembly

Examples of specialized tool functions may include:

• Engaging retaining-ring slots

• Holding an optical collar evenly

• Removing a lens assembly

• Working around recessed housing components

• Disassembling PVS-31 or panoramic NVG structures

• Supporting controlled installation of sensitive parts

The exact tools needed depend on the device.

A PVS-14 does not necessarily use the same complete tool set as a PVS-31, BNVD-1431 or GPNVG-style housing.

That is why the tool must match the platform.

Assembly Tools vs Disassembly Tools

Assembly and disassembly create different risks.

During Disassembly

The main concerns include:

• Breaking seized components loose

• Avoiding tool slips

• Preventing thread damage

• Keeping dust out of the housing

• Recording the original component order

• Avoiding electrical damage

A component that has been installed for a long time may require controlled force to remove.

Applying force through the wrong contact points can deform the part before it loosens.

The PVS31 GPNVG18 disassemble tools set is intended for platform-specific disassembly rather than relying on general-purpose workshop tools.

During Assembly

The main concerns include:

• Correct component orientation

• Cleanliness

• Even seating

• Seal positioning

• Appropriate tightening

• Proper optical spacing

• Avoiding excessive force

A good assembly tool helps the user install components predictably without damaging the newly cleaned optical path.

Why Retaining Rings Need the Correct Tool

Retaining rings appear simple, but they perform critical jobs.

A retaining ring may hold an image intensifier tube or optical assembly in a precise position.

If it is too loose, the component may move.

If it is excessively tightened, the component, thread or seal may be damaged.

If the ring is tightened unevenly, the assembly may not seat correctly.

Improvised tools often contact only one small point on the ring.

This concentrates force and increases the chance of:

• Slipping

• Gouging the ring

• Bending engagement points

• Applying uneven torque

• Scratching nearby surfaces

A properly fitting tool distributes force more evenly and gives the technician better control.

Why More Leverage Is Not Always Better

Large handles and long tools produce more leverage.

That can be useful for automotive work, but it can be dangerous in night vision assembly.

NVG components are small.

The correct amount of force may be much lower than the user expects.

A long wrench or large pair of pliers can make a component feel easy to turn even while the threads are being damaged.

Excess leverage hides useful feedback.

Precision tools provide enough control to move the component without encouraging unnecessary force.

During assembly, resistance should be treated as information.

If a component suddenly becomes difficult to turn, stop and inspect it.

Do not solve the problem by using a longer handle.

Cleanliness Is Part of the Tooling System

A correct tool can still create problems if it is dirty.

NVG assembly tools should be kept free from:

• Metal shavings

• Old lubricant

• Dust

• Fibers

• Corrosion

• Chemical residue

• Grease from unrelated mechanical work

A tool used for general repairs should not automatically be used inside a night vision housing.

Contamination introduced during assembly may appear later as:

• Internal dust

• Spots in the optical view

• Reduced lens clarity

• Seal contamination

• Difficult cleaning

Ideally, NVG tools should be stored separately in a clean case and reserved for optical work.

The work surface should also be clean, organized and well lit.

Specialized Tools Do Not Replace Training

Purchasing a dedicated assembly tool set does not automatically make every repair safe.

The user still needs to understand:

• Tube format

• Housing design

• Electrical contacts

• Optical orientation

• Seal placement

• Component order

• Focus adjustment

• Collimation requirements

• Nitrogen purging

A specialized tool reduces mechanical risk.

It does not replace technical knowledge.

Before disassembly, builders should have:

• A clear procedure

• A clean workspace

• Correct replacement parts

• A method for organizing components

• A plan for testing after assembly

• Access to professional help if problems appear

Complex binocular and panoramic systems may require professional calibration after physical assembly.

Monocular NVGs: Simpler Does Not Mean Risk-Free

A monocular such as a PVS-14 has one image intensifier tube and one optical channel.

This makes it simpler than a binocular or panoramic device, but it still includes sensitive parts.

Potential repair areas include:

• Objective lens

• Eyepiece

• Tube retaining ring

• Gain-control components

• Battery housing

• O-rings

• Purge components

Because the PVS-14 format is common, some users assume it can be assembled with any available hand tool.

That assumption can result in scratched optics, damaged retaining rings or poor sealing.

The simpler the housing appears, the easier it is to underestimate the precision required.

Binocular NVGs Require Additional Precision

Binocular systems such as PVS-31-style devices and BNVD housings use two optical channels.

Each channel must function correctly, but the two channels must also work together.

After assembly, problems can include:

• Different focus behavior

• Uneven image position

• Mismatched optical alignment

• Eye strain

• Reduced depth perception

• Poor collimation

Specialized mechanical tools help protect the housing and optical components, but final binocular quality also depends on calibration and collimation.

For a wider discussion of the complete manufacturing process, read What Makes a Military-Spec Night Vision Goggle?.

Panoramic NVGs Have Even Less Room for Error

Panoramic night vision systems may use four image intensifier tubes and multiple optical channels.

A mistake affecting one channel can disrupt the entire panoramic experience.

Potential challenges include:

• Tube matching

• Optical channel alignment

• Lens installation

• Housing sealing

• Complex disassembly

• Cable and power routing

• Final calibration

A GPNVG or PNVG-style housing should not be approached as four independent monoculars.

It is a coordinated multi-channel system.

This is one reason a platform-specific disassembly tool set is more appropriate than improvised pliers and screwdrivers.

Specialized Tools Protect Resale Value

Night vision buyers often evaluate the physical condition of used housings and components.

Visible tool marks can reduce confidence.

Damage such as:

• Scratched rings

• Chewed slots

• Deformed collars

• Marred housings

• Cracked caps

• Stripped threads

suggests that the device may have been serviced carelessly.

Even when the NVG still works, poor external workmanship can reduce resale value and make buyers question the condition of the internal components.

Using the correct tools helps preserve both function and appearance.

Specialized Tools Improve Repeatability

For a one-time hobby build, a user may be tempted to improvise.

For wholesalers, repair shops and professional builders, improvisation is especially risky.

A professional process must be repeatable across multiple devices.

The same operation should produce consistent results without relying on luck.

Dedicated tools support repeatability by providing:

• Consistent fit

• Predictable engagement

• Lower component damage rates

• Faster workflow

• Cleaner workmanship

• Easier technician training

This becomes important for OEM and wholesale operations.

A supplier building multiple NVGs cannot afford inconsistent assembly methods based on whatever tool happens to be available.

For related B2B information, read How ARGUS Supports Night Vision Wholesalers.

What Specialized Tools Cannot Verify

Mechanical assembly tools help install and remove components.

They do not verify every part of NVG performance.

After assembly, additional checks may still be needed for:

• Tube image quality

• Diopter focus

• Electrical function

• Gain operation

• Optical alignment

• Binocular collimation

• Environmental sealing

• Nitrogen purging

• Waterproof performance

A device that powers on is not necessarily fully assembled to a professional standard.

The complete workflow should include mechanical assembly, optical testing and environmental servicing.

ARGUS describes broader R&D and testing capabilities on its About Us and Capabilities pages.

When Should You Stop and Use a Professional Technician?

Stop the assembly or repair if:

• A component will not turn normally

• A tube does not seat correctly

• Threads appear damaged

• The correct tool does not fit

• Electrical contacts are unclear

• A seal has been cut or displaced

• An optical surface has been touched or contaminated

• The binocular image feels misaligned

• The device develops internal fogging

• You cannot verify collimation

• You do not have a safe testing process

Continuing after a warning sign can turn a small problem into permanent damage.

Professional servicing may cost more than a basic DIY attempt, but it usually costs less than replacing an image intensifier tube, optical assembly or housing.

NVG Assembly Checklist

Before beginning work, confirm that you have:

• A tool set designed for the platform

• A clean and organized work area

• Correct replacement components

• Lens-safe cleaning supplies

• A method for protecting exposed optics

• A way to organize small rings and seals

• Tube compatibility information

• Assembly documentation

• A testing plan

• Access to purging and calibration where required

During the work:

1. Inspect every tool before contact.

2. Remove loose dust and debris.

3. Confirm component orientation.

4. Start threaded parts by hand where appropriate.

5. Stop if resistance feels abnormal.

6. Avoid unnecessary force.

7. Keep metal tools away from exposed glass.

8. Inspect O-rings before closing the housing.

9. Test electrical function carefully.

10. Complete optical and sealing checks after assembly.

Which Tool Set Should You Choose?

Choose a tool set based on the NVG platform you actually service.

A general assembly set may be useful for common night vision maintenance tasks.

A platform-specific disassembly set may be necessary for more specialized housings.

Relevant ARGUS pages include:

• NIGHT VISION DEVICE ASSEMBLY TOOLS SETS

• PVS31 GPNVG18 disassemble tools set

• Diopter tube test device

• Purge Valve Fitting

• Night vision spare parts

Do not choose only by price.

Confirm that the tool is intended for the component and housing you plan to service.

Common Mistakes to Avoid

Using Pliers on Precision Rings

Pliers can concentrate pressure and leave permanent marks.

Using a Screwdriver as a Spanner

A screwdriver can slip from a ring slot and contact the lens or housing.

Forcing a Threaded Component

More force cannot correct cross-threading or incorrect alignment.

Reusing Dirty Workshop Tools

Contamination can enter the optical housing.

Opening the Device Without Replacement Seals

A damaged O-ring should not be reused simply because no replacement is available.

Skipping Post-Assembly Testing

Powering on does not confirm collimation, sealing or proper focus.

Assuming Every NVG Uses the Same Tools

PVS-14, PVS-31, BNVD and panoramic housings can have different interfaces.

Final Thoughts

Cheap tools do not ruin expensive NVGs because every inexpensive tool is automatically bad.

They cause damage because general-purpose tools often do not fit precision night vision components correctly.

Poor fit creates:

• Slipping

• Uneven force

• Scratches

• Damaged rings

• Stripped threads

• Seal problems

• Optical contamination

• Expensive repair work

A specialized assembly tool set gives the builder better control and reduces unnecessary contact with sensitive parts.

It also supports cleaner, more repeatable workmanship.

However, correct tools are only one part of professional NVG service.

A complete process may also require:

• Tube inspection

• Optical cleaning

• Correct seal installation

• Diopter testing

• Collimation

• Leak testing

• Nitrogen purging

• Final quality control

When an NVG contains expensive tubes, coated lenses and precision housing components, improvising with the wrong tool is not real savings.

The tool is inexpensive.

The mistake is not.

Protect the device by using tools designed for the job, following a controlled procedure and stopping when a repair exceeds your equipment or experience.
